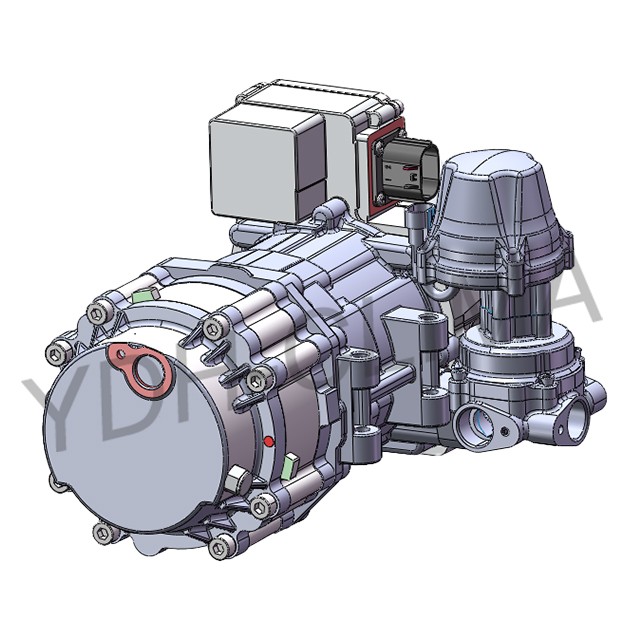

YDH.EC.0191

Max. cooling capacity: 15.8Kw
Rated voltage: DC540V
Max. rotation speed: 6000 Rpm
Rated current: 10.9A
Refrigerant: R134a
Refrigerate oil: EMKARATE RL68H/250ml
Energy efficiency ratio: 2.7
Compression ratio：10.0 MAX
Displacement: 66 ml/rev
Weight:11.5 kg
Cooling method: Self cooling
Water proof : IP 67
